Universal Actuator UA | EDrive Actuators

Product Information Dimensioned Drawings Ordering Guide Application Worksheet

Cost Effective, General Purpose Automation Solution

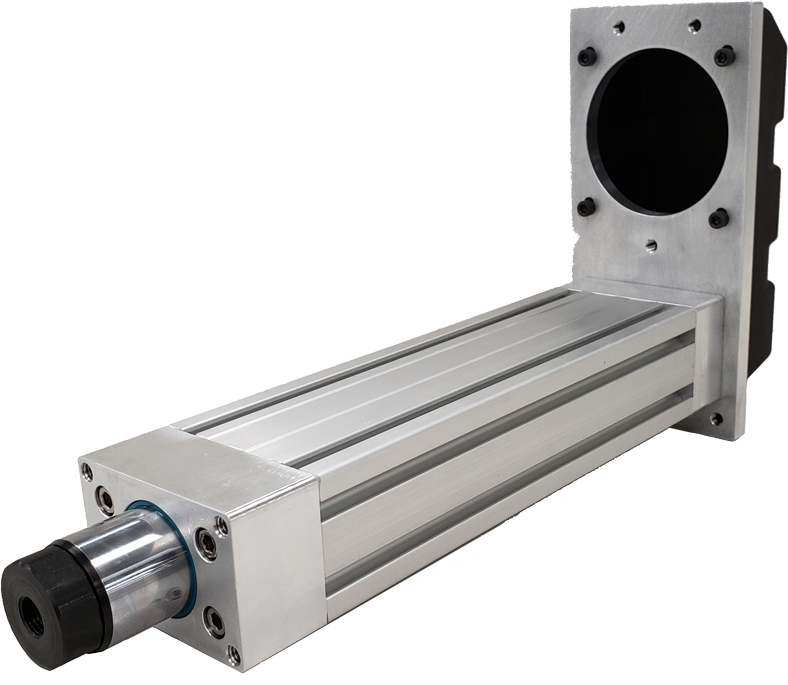

EDrive's Universal Actuator UA series is designed to easily drop into automation applications. These compact actuators feature an aluminum extrusion cylinder designed with industry-standard t-slots for quick mounting. Chrome piston with anti-rotation is standard and available in lengths up to 24 inches and speeds up to 50 in/sec. Quickly position limit switches along the cylinder. Ideal for a variety of industries and applications including Industrial Automation, Robotics, Packaging, Food & Beverage, and many more!

Cost Effective, General Purpose Automation Solution

For 2D/3D drawings, please contact EDrive Actuators at (860) 953-0588 or [email protected]

UA Size	Screw Code	Rated Thrust	Max. Velocity	Max. Stroke	Frame Size	Screw Lead	Backlash Max	Max. Screw Speed	Max. Torque At Screw	Dynamic Capacity Per Million Revs	Dynamic Capacity Per Million Inches	Max. Motor Or Gearhead Pilot Supported	Inertia 1:1 Zero Stroke	Inertia 1:1 Per Inch Of Stroke	Inertia 2:1 Zero Stroke	Inertia 2:1 Per Inch Of Stroke	Inertia Inline Zero Stroke	Inertia Inline Per Inch Of Stroke	Weight "P1/P2" Mount Zero Stroke	Weight "L0" Mount Zero Stroke	Weight Per Inch Of Stroke
		lb_f	in/s	in	in	in	in	RPM	in-lb	lb_f	lb_f	in	lb-in²	lb-in²	lb-in²	lb-in²	lb-in²	lb-in²	lb	lb	lb
UA2	AB2	500	50	24	2	0.5	0.010	6,000	44	1,002	738	3.74	0.4	0.0016	0.21	0.0004	0.13	0.0016	5.75	5.5	0.5
UA2	AB5	500	16	24	2	0.2	0.010	4,800	18	1,221	714	3.74	0.41	0.0031	0.21	0.0008	0.13	0.0031	5.75	5.5	0.5

UA Size	Screw Code	Rated Thrust	Max. Velocity	Max. Stroke	Frame Size	Screw Lead	Backlash Max	Max. Screw Speed	Max. Torque At Screw	Dynamic Capacity Per Million Revs	Dynamic Capacity Per Million Inches	Max. Motor Or Gearhead Pilot Supported	Inertia 1:1 Zero Stroke	Inertia 1:1 Per Inch Of Stroke	Inertia 2:1 Zero Stroke	Inertia 2:1 Per Inch Of Stroke	Inertia Inline Zero Stroke	Inertia Inline Per Inch Of Stroke	Weight "U" Mount Zero Stroke	Weight "L" Mount Zero Stroke	Weight Per Inch Of Stroke
		kN	mm/s	mm	mm	in	mm	RPM	Nm	kN	kN	mm	kg-m² (10⁻⁶)	kg-m² (10⁻⁶)	kg-m² (10⁻⁶)	kg-m² (10⁻⁶)	kg-m² (10⁻⁶)	kg-m² (10⁻⁶)	kg	kg	kg
2	AB2	2.22	1270	610	50.8	0.500	0.254	6,000	5	4.46	3.28	95	117.84	0.4469	60.31	0.1117	37.46	0.4469	2.61	2.49	0.27
2	AB5	2.22	406	610	50.8	0.200	0.254	4,800	2	5.43	3.18	95	119.52	0.8929	60.73	0.2232	39.15	0.8929	2.61	2.49	0.27

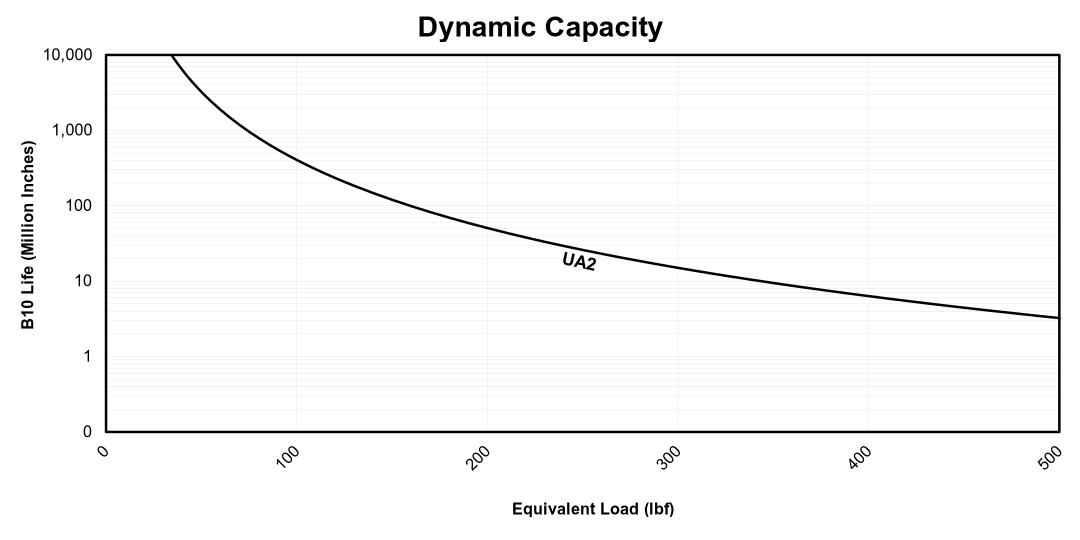

Dynamic Capacity

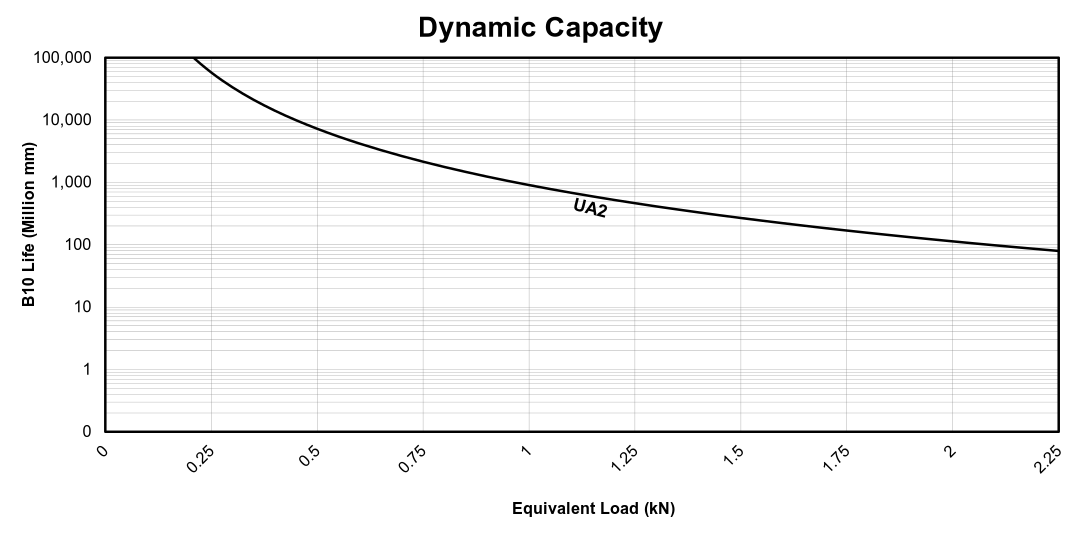

Dynamic Capacity (Metric)

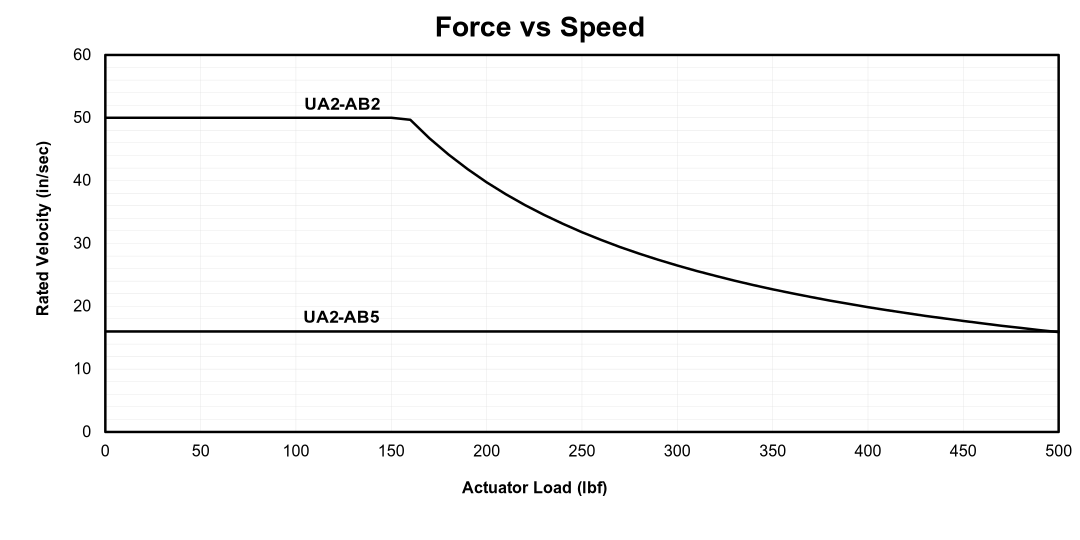

Force vs Speed

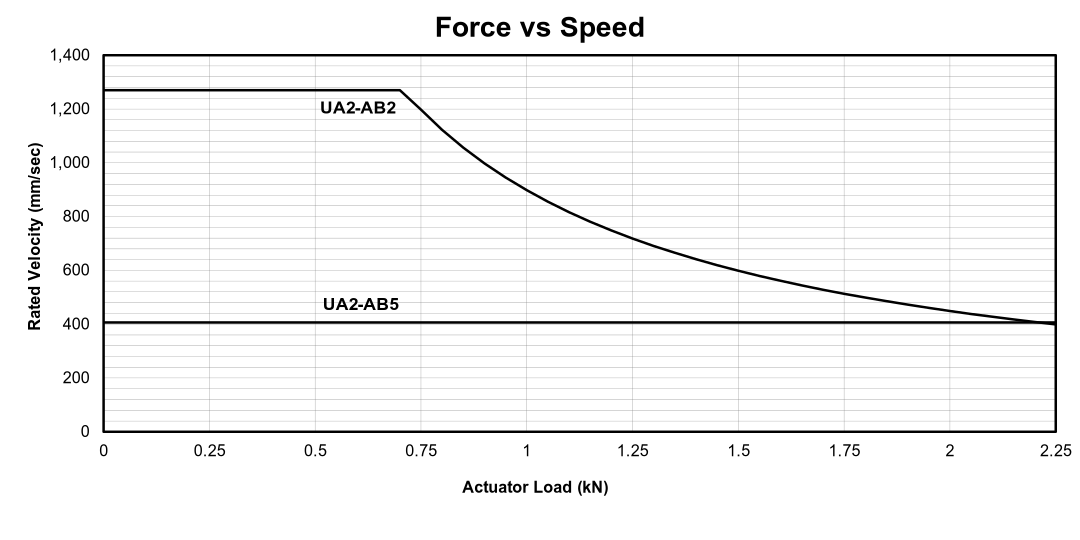

Force vs Speed (Metric)

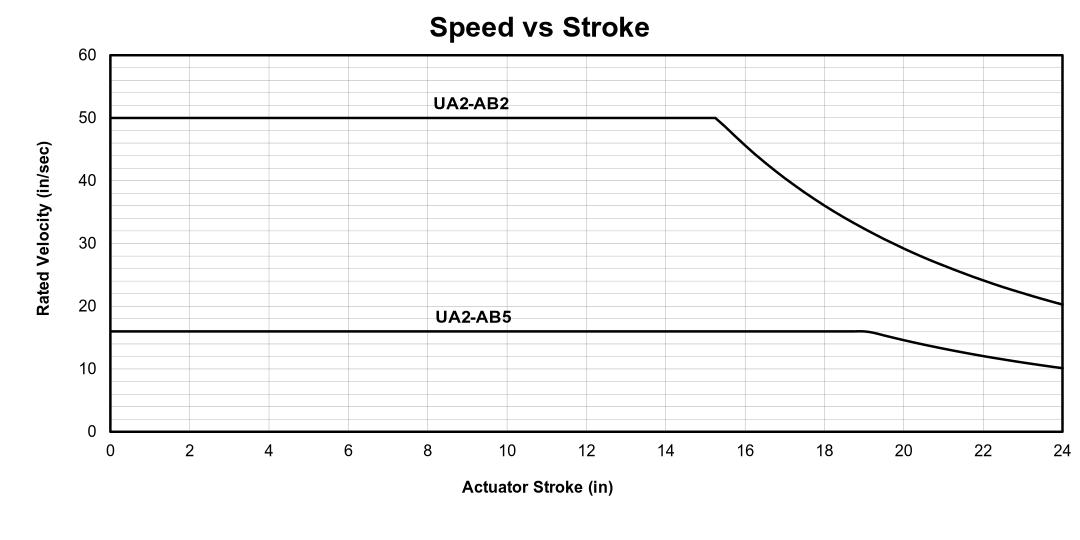

Speed vs Stroke

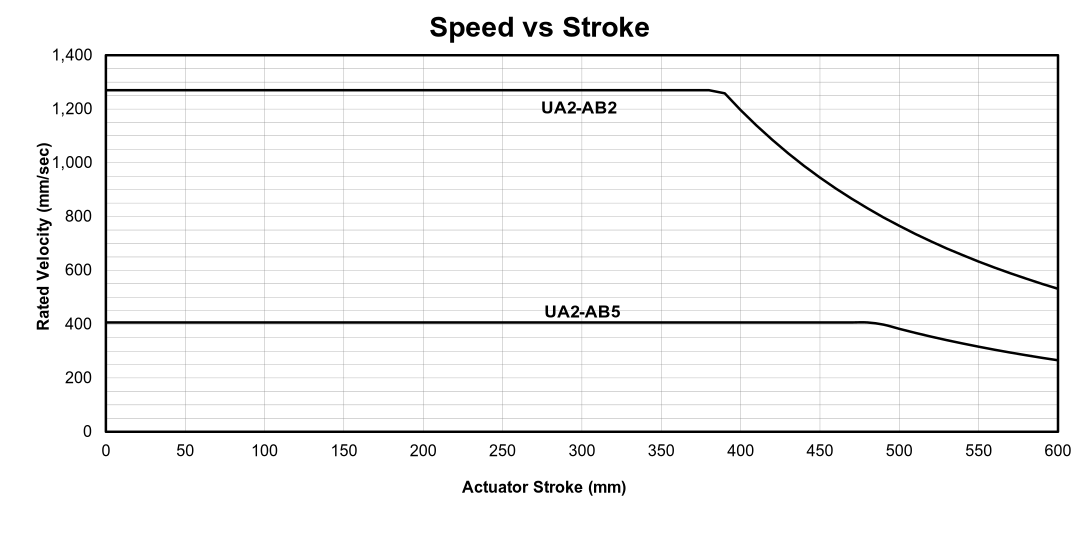

Speed vs Stroke (Metric)
